Lucas Santoni

Hexpresso FIC Quals 2019: Step 4

Published December 19, 2019 • 2 minutes read

The fourth step is a reverse engineering challenge.

Introduction

We are given an archive that contains a Linux binary, which is a fake ransomware, and a file that has been encrypted, that we must recover.

Let's take a look at the binary:

$ file wannafic
wannafic: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=97354f92f87502594330507adef22eca2765dd76, for GNU/Linux 3.2.0, stripped

It is stripped. However, no obfuscation or anti-debug so it is very readable in Ghidra.

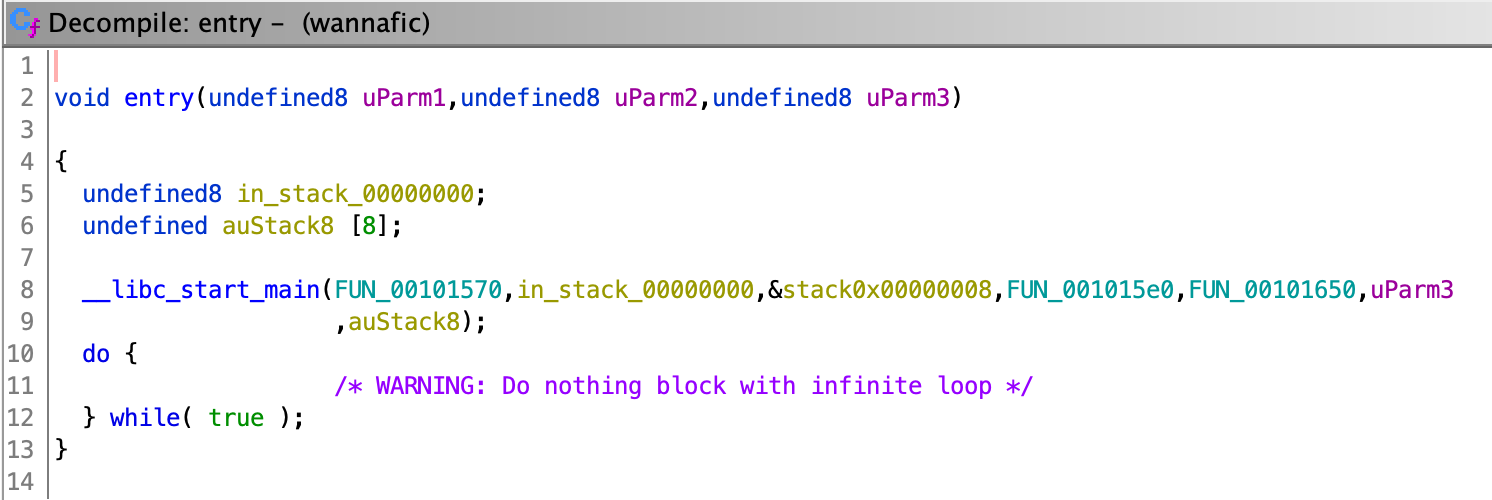

The first step is to find the address of main. We know that it is the first argument passed to __libc_start_main, called by entry:

Entry

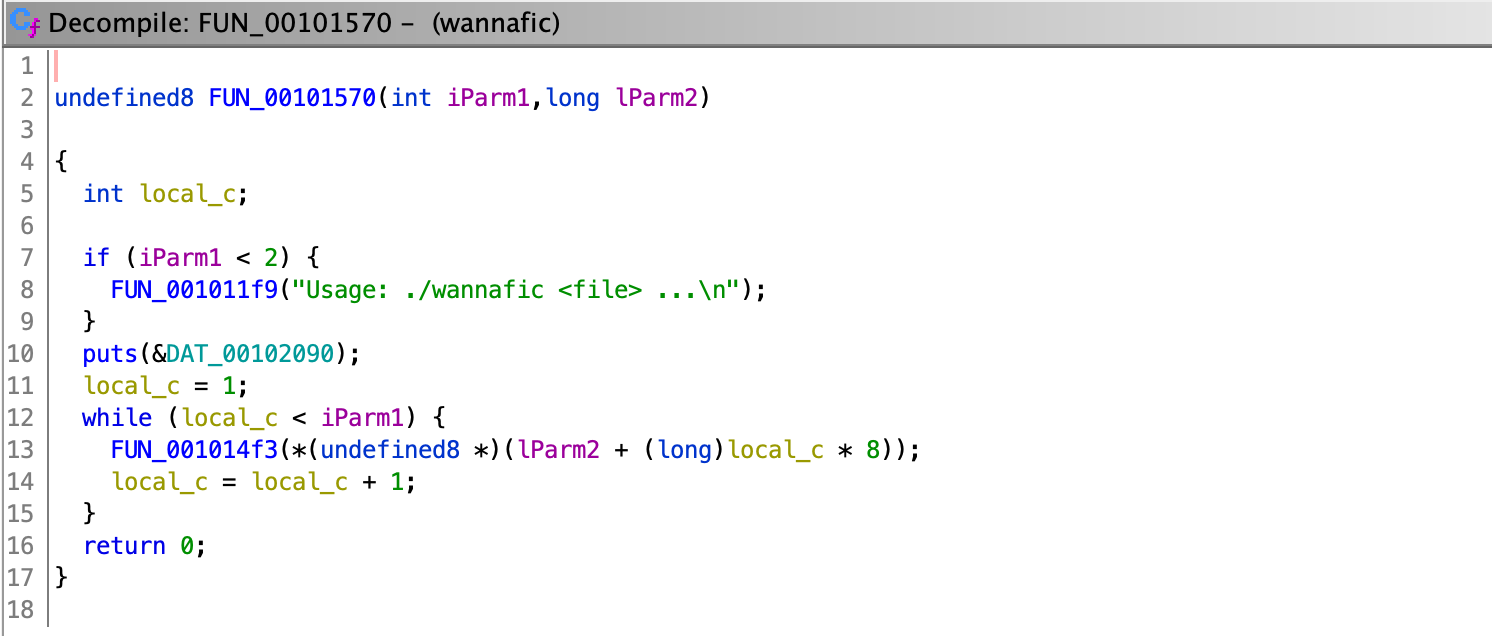

We now know that main is FUN_00101570:

Main

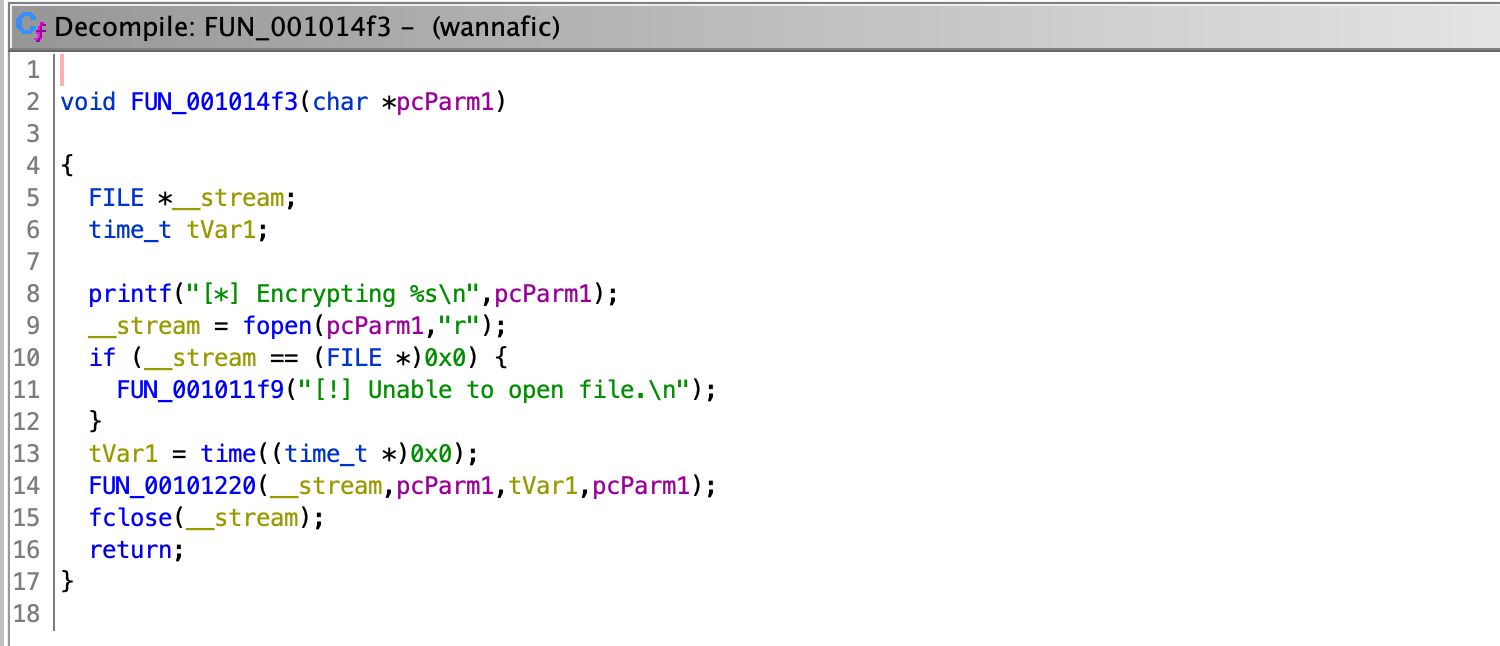

main iterates over the file paths passed as parameters and calls FUN_001014f3:

Encrypt File

This function retrieves the current time via time(NULL) and call the actual encryption routine (FUN_00101220). Let's see:

Routine

Nothing special, it is a basically a XOR. The key is generated from the current time and the name of the file to be encrypted.

Let's recap what we know:

Let's see at what time the crypted file has been generated:

$ stat flag.txt.crypt
16777220 16551658 -rw-r--r-- 1 geographer staff 0 2912 "Dec 12 13:37:48 2019" "Dec 12 13:37:42 2019" "Dec 19 17:45:01 2019" "Dec 12 13:37:42 2019" 4096 8 0 flag.txt.crypt

Dec 12 13:37:42 2019 is a fairly explicit date. Its original name is flag.txt as the crypter adds .crypt at the end of the filename after encryption. We have all we need to decrypt the file.

We could re-implement the routine in C from Ghidra's or IDA's decompilation output but it is faster to re-use the crypter itself, as the algorithm is symmetrical. We only need to force the system date to be Dec 12 13:37:42 2019, and rename the crypted file to flag.txt so that we generate the same key.

In order not to mess with the actual system time, and also get the same (s)rand implementation, we can use Vagrant. Ubuntu worked for me:

Vagrant.configure("2") do |config|
  config.vm.box = "ubuntu/xenial64"
  config.vm.define :random
end

Once inside the box:

$ mv flag.txt.crypt flag.txt
$ sudo date -s "Dec 12 13:37:42 2019" && ./wannafic flag.txt
Thu Dec 12 13:37:42 UTC 2019

 ▄█     █▄     ▄████████ ███▄▄▄▄   ███▄▄▄▄      ▄████████
███     ███   ███    ███ ███▀▀▀██▄ ███▀▀▀██▄   ███    ███
███     ███   ███    ███ ███   ███ ███   ███   ███    ███
███     ███   ███    ███ ███   ███ ███   ███   ███    ███
███     ███ ▀███████████ ███   ███ ███   ███ ▀███████████
███     ███   ███    ███ ███   ███ ███   ███   ███    ███
███ ▄█▄ ███   ███    ███ ███   ███ ███   ███   ███    ███
 ▀███▀███▀    ███    █▀   ▀█   █▀   ▀█   █▀    ███    █▀
                        FIC2020
                  ▄████████  ▄█   ▄████████
                 ███    ███ ███  ███    ███
                 ███    █▀  ███▌ ███    █▀
                ▄███▄▄▄     ███▌ ███
               ▀▀███▀▀▀     ███▌ ███
                 ███        ███  ███    █▄
                 ███        ███  ███    ███
                 ███        █▀   ████████▀

[*] Encrypting flag.txt
[*] ts : 1576157862
[*] Writing to flag.txt.crypt
[*] Done !

$ cat flag.txt.crypt
x>`oaNFDTF}O]

It does not seem to work... And the decrypted file is much smaller than the encrypted one.

I spent some more time in Ghidra and noticed something in the (en/de)cryption routine:

while( true ) {
  iVar2 = fgetc(pFParm1);
  if ((byte)iVar2 == 0xff) break;
  // ...
}

The original file is guaranteed not to contain any 0xff. However, the encrypted file definitely contains some. Let's replace (and not remove as it will invalidate the generated key, the total number of bytes to (en/de)crypt must be the same) them and try again:

$ mv flag.txt.crypt flag.txt
$ sed -i 's/\xff/\x00/g' flag.txt
$ sudo date -s "Dec 12 12:37:42 2019" && ./wannafic flag.txt
[same output as before]
$ cat flag.txt.crypt

Note: after a few tries, I forced the system time to 12:37, instead of 13:37. I don't really know why, maybe some timezone issue because I live in France.

And...

 ██░ ██ ▓█████ ▒██   █▒ ██▓██   ██▀███  ▓█████   ██████   ██████  ▒█████      █     █░ ▄▄▄        ██████     ██░ ██ ▓█████  ██▀███  ▓█████
▓██░ ██▒▓█   ▀ ▒▒ █ █ ▒░▓██░  ██▒▓██ ▒ ██▒▓█   ▀ ▒██    ▒ ▒██    ▒ ▒██▒  ██▒   ▓█░ █ ░█░▒████▄    ▒██    ▒    ▓██░ ██▒▓█   ▀ ▓██ ▒ ██▒▓█   ▀
▒██▀▀██░▒███   ░░  █  ▓██░ ██▓▒▓██ ░▄█ ▒▒███   ░ ▓██▄   ░ ▓██▄   ▒██░  ██▒   ▒█░ █ ░█ ▒██  ▀█▄  ░ ▓██▄      ▒██▀▀██░▒███   ▓██ ░▄█ ▒▒███
░▓█ ░██ ▒▓█  ▄    █ █ ▒ ▒██▄█▓▒ ▒▒██▀▀█▄  ▒▓█    ▒   ██▒  ▒   ██▒▒██   ██░   ░█░ █ ░█ ░██▄▄▄▄██   ▒   ██▒   ░▓█ ░██ ▒▓█  ▄ ▒██▀▀█▄  ▒▓█  ▄
░▓█▒░██▓░▒████▒▒██▒ ▒██▒▒██▒ ░  ░░██▓ ▒██▒░▒████▒▒██████▒▒▒██████▒▒░ ████▓▒░   ░░██▒██▓  ▓█   ▓██▒▒██████▒▒   ░▓█▒░██▓░▒████▒░██▓ ▒██▒░▒███▒
 ▒ ░░▒░▒░░ ▒░ ░▒▒ ░ ░▓ ░▒▓▒░ ░  ░░ ▒▓ ░▒▓░░░ ▒  ░▒ ▒▓▒ ▒ ░▒ ▒▓▒ ▒ ░░ ▒░▒░▒░    ░░▒ ▒   ▒▒   ▓▒█░▒ ▒▓▒ ▒ ░    ▒ ░░▒░▒░░ ▒░ ░░ ▒▓ ░▒▓░░░ ▒░ ░
 ▒ ░▒░ ░ ░ ░  ░░   ░▒ ░░▒ ░       ░▒ ░ ▒░ ░ ░  ░░ ░▒  ░ ░░ ░▒  ░ ░  ░ ▒ ▒░      ▒ ░ ░    ▒  ▒▒ ░░▒  ░ ░    ▒ ░▒░ ░ ░ ░  ░  ░▒ ░ ▒░ ░ ░  ░
 ░  ░░ ░   ░    ░    ░  ░░        ░░   ░    ░   ░  ░  ░  ░  ░  ░  ░ ░ ░ ▒       ░   ░    ░   ▒   ░  ░  ░      ░  ░░ ░   ░     ░░   ░    ░
 ░  ░  ░   ░  ░ ░    ░             ░        ░  ░      ░        ░      ░ ░         ░          ░  ░      ░      ░  ░  ░   ░  ░   ░        ░  ░


Well done buddy !!!!
Next step : https://ctf.hexpresso.fr/6bd1d24ab3aa08784f868a533bcdc215

Click here for the next step!
